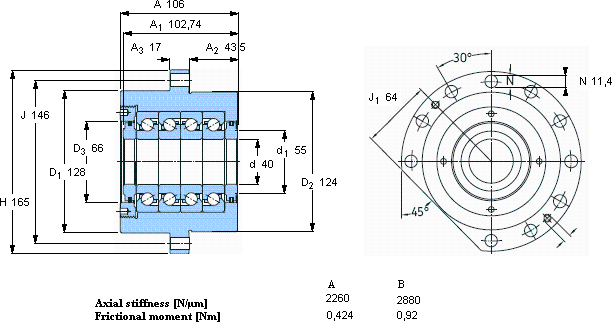

SKFFBSA 208/ QFC參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 40 | 124 | 106 | 69,275 | 224 | 8,3 | 3150 | 1575 | 9,7 | FBSA 208/ QFC | BSQU 240 TFT | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 208/ QFC屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：40，外徑：124，厚度106，SKFFBSA 208/ QFC主要應用于工程機械、等領域。如果您需要購買或者了解更多關于SKFFBSA 208/ QFC的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 208/ QFC近似型號
- SKF NJ 2208 ECP * 尺寸：40mm × 80 × 23 類型：圓柱滾子軸承 備注：單列
- SKF FBSA 208/ QBC 尺寸：40mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF QJ 208 N2MA * 尺寸：40mm × 80 × 18 類型：角接觸球軸承 備注：四點接觸球軸承
- SKF 53208 尺寸：40mm × 68 × 23 類型：推力球軸承 備注：單向，帶球面軸承座墊圈
- SKF CR 29208 尺寸：74.625mm × 85.8 × 4.57 類型：徑向軸密封件 備注：徑向軸密封件
- SKF 7208 BEGAY 尺寸：40mm × 80 × 18 類型：角接觸球軸承 備注：單列
- SKF NU 2088 ECMA 尺寸：440mm × 650 × 122 類型：圓柱滾子軸承 備注：單列
- SKF 7208 BEGAP * 尺寸：40mm × 80 × 18 類型：角接觸球軸承 備注：單列
- SKF 2208 EKTN9 尺寸：40mm × 80 × 23 類型：自調心球軸承 備注：圓柱孔和圓錐孔
- SKF 6210-2Z/VA208 尺寸：50mm × 90 × 20 類型：深溝球軸承 備注：用于高溫的深溝球軸承
- SKFFBSA 208/ QFC相關型號
- SKFFBSA 209/ QFC 尺寸：45mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ QBC 尺寸：25mm × 80 × 82 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ DF 尺寸：40mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208 A/ QBC 尺寸：40mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QFC 尺寸：40mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208 A/ QFC 尺寸：40mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QBC 尺寸：30mm × 80 × 84 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ QFC 尺寸：50mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206 A/ QFC 尺寸：30mm × 88 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ DF 尺寸：50mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QFC推薦型號
- SNR 6034 尺寸：170mm × 260 × 42 類型：
- GMN 7240AC 尺寸：200mm × 360 × 58 類型：
- DKF 7036AC/DT 尺寸：180mm × 280 × 92 類型：
- SKF 22244CCK/W33 尺寸：220mm × 400 × 108 類型：
- NTN 1317K+H317 尺寸：75mm × 180 × 41 類型：
- ZKL NU318 尺寸：90mm × 190 × 43 類型：
- MAC N215 尺寸：75mm × 130 × 25 類型：
- KOYO NJ328+HJ328 尺寸：140mm × 300 × 62 類型：
- NTN UKK315+H2315 尺寸：65mm × 73 × 262 類型：
- SKF 6072M 尺寸：360mm × 540 × 82 類型：
