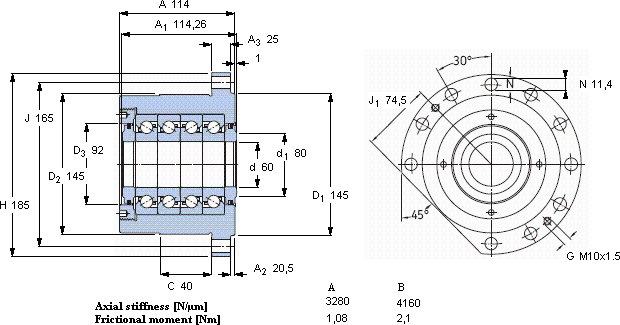

SKFFBSA 212 A/ QFC參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 60 | 145 | 114 | 113,285 | 432 | 16 | 2500 | 1250 | 12,3 | FBSA 212 A/ QFC | BSQU 260/1 TFT | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 212 A/ QFC屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：60，外徑：145，厚度114，SKFFBSA 212 A/ QFC主要應用于鍛壓機床、等領域。如果您需要購買或者了解更多關于SKFFBSA 212 A/ QFC的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 212 A/ QFC近似型號
- SKF NJ 212 ECML * 尺寸：60mm × 110 × 22 類型：圓柱滾子軸承 備注：單列
- SKF NU 212 ECML * 尺寸：60mm × 110 × 22 類型：圓柱滾子軸承 備注：單列
- SKF YET 212-204 尺寸：57.15mm × 100 × 26 類型：Y-軸承 備注：帶偏心鎖定環的
- SKF 7212 BEP 尺寸：60mm × 110 × 22 類型：角接觸球軸承 備注：單列
- SKF 7212 ACD/HCP4A 尺寸：60mm × 110 × 22 類型：Angular contact ball bearings 備注：角接觸球軸承, 精密
- SKF YET 212-207 尺寸：61.913mm × 110 × 26 類型：Y-軸承 備注：帶偏心鎖定環的
- SKF 6212 NR * 尺寸：60mm × 110 × 22 類型：深溝球軸承 備注：單列，帶止動環槽
- SKF CR 21211 尺寸：53.975mm × 77.75 × 12.7 類型：徑向軸密封件 備注：徑向軸密封件
- SKF NJ 212 ECP * 尺寸：60mm × 110 × 22 類型：圓柱滾子軸承 備注：單列
- SKF NJ 2212 ECJ * 尺寸：60mm × 110 × 28 類型：圓柱滾子軸承 備注：單列
- SKFFBSA 212 A/ QFC相關型號
- SKFFBSA 210/ DB 尺寸：50mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210 A/ QFC 尺寸：50mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ QFC 尺寸：35mm × 90 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ DF 尺寸：20mm × 60 × 47 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208 A/ QBC 尺寸：40mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ DB 尺寸：25mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ DB 尺寸：20mm × 60 × 47 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206 A/ QBC 尺寸：30mm × 88 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DF 尺寸：45mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DB 尺寸：45mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 212 A/ QFC推薦型號
- KOYO 16030 尺寸：150mm × 225 × 24 類型：
- GMN 71911C/DB 尺寸：55mm × 80 × 26 類型：
- BARDEN 71922C/DB 尺寸：110mm × 150 × 40 類型：
- DKF 7308AC/DB 尺寸：40mm × 90 × 46 類型：
- NTN RNA4906 尺寸：30mm × 47 × 17 類型：
- NTN BK1712 尺寸：17mm × 23 × 12 類型：
- KOYO 30205 尺寸：25mm × 52 × 15 類型：
- ASAHI UKP217+H2317 尺寸：75mm × 82 × 330 類型：
- ASAHI UCK322 尺寸：110mm × 117 × 385 類型：
- SKF 210-2ZNR 尺寸：50mm × 90 × 20 類型：
