SKFBEAM 030080-2RS參數

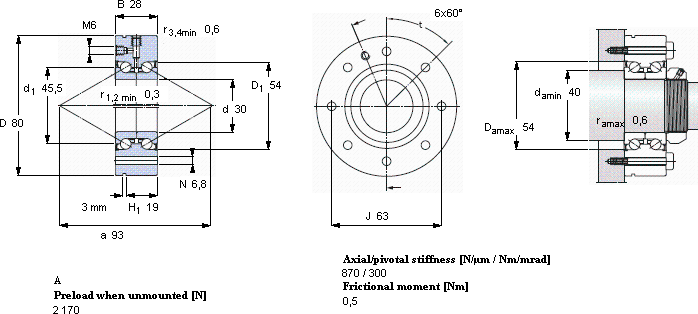

| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
| mm | kN | kN | r/min | kg | - | |||||
 | ||||||||||
| 30 | 80 | 28 | 29,1 | 64 | 2,36 | 2600 | 0,78 | BEAM 030080-2RS | BEAM 30/80/C 7P60 | |
SKFAngular contact thrust ball bearings for screw drivesBEAM 030080-2RS屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, double direction, for bolt mounting的Angular contact thrust ball bearings for screw drives，內徑：30，外徑：80，厚度28，SKFBEAM 030080-2RS主要應用于機床主軸、等領域。如果您需要購買或者了解更多關于SKFBEAM 030080-2RS的信息， 歡迎撥打訂購熱線：022-27921004
- SKFBEAM 030080-2RS近似型號
- SKF BEAM 030080-2Z 尺寸：30mm × 80 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF BEAM 030080-2RS/PE 尺寸：30mm × 80 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF BEAM 030080-2RS 尺寸：30mm × 80 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 030080-2RS相關型號
- SKFBEAM 030100-2RS 尺寸：30mm × 100 × 38 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 030100-2Z 尺寸：30mm × 100 × 38 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 020068-2Z/PE 尺寸：20mm × 68 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 017062-2Z 尺寸：17mm × 62 × 25 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 060145-2RS 尺寸：60mm × 145 × 45 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 017062-2RS 尺寸：17mm × 62 × 25 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 035090-2RS 尺寸：35mm × 90 × 34 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 050140-2RS 尺寸：50mm × 140 × 54 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 025075-2Z 尺寸：25mm × 75 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 017062-2Z/PE 尺寸：17mm × 62 × 25 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 030080-2RS推薦型號
- SKF 6018-RS 尺寸：90mm × 140 × 24 類型：
- KOYO 7232C 尺寸：160mm × 290 × 48 類型：
- KOYO 7232B 尺寸：160mm × 290 × 48 類型：
- FAFNIR 7226B 尺寸：130mm × 230 × 40 類型：
- GMN 7328B/DB 尺寸：140mm × 300 × 124 類型：
- TORRINGTON 22324CCK/W33+H2324 尺寸：110mm × 260 × 86 類型：
- SKF NJ328E+HJ328E 尺寸：140mm × 300 × 62 類型：
- SKF UCFU218 尺寸：90mm × 96 × 240 類型：
- SKF NJ214ECP 尺寸：70mm × 125 × 24 類型：
- SKF 65390/65320/QCL7C 尺寸：49.212mm × 114.3 × 44.45 類型：
