SKFBEAM 030100-2RS參數

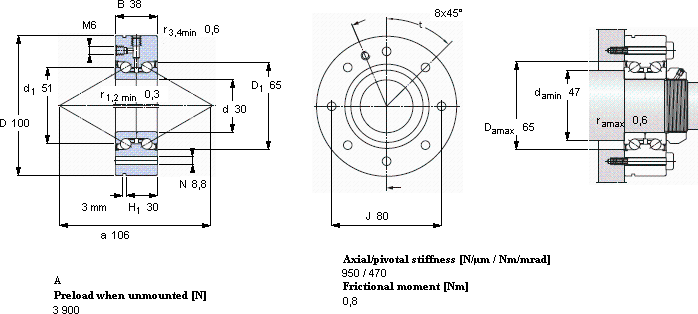

| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
| mm | kN | kN | r/min | kg | - | |||||
 | ||||||||||
| 30 | 100 | 38 | 60 | 108 | 4 | 2600 | 1,65 | BEAM 030100-2RS | BEAM 30/100/C 7P60 | |
SKFAngular contact thrust ball bearings for screw drivesBEAM 030100-2RS屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, double direction, for bolt mounting的Angular contact thrust ball bearings for screw drives，內徑：30，外徑：100，厚度38，SKFBEAM 030100-2RS主要應用于輥道子、等領域。如果您需要購買或者了解更多關于SKFBEAM 030100-2RS的信息， 歡迎撥打訂購熱線：022-27921004
- SKFBEAM 030100-2RS近似型號
- SKF BEAM 030100-2Z 尺寸：30mm × 100 × 38 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF BEAM 030100-2RS 尺寸：30mm × 100 × 38 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 030100-2RS相關型號
- SKFBEAM 012055-2Z 尺寸：12mm × 55 × 25 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 012055-2RS 尺寸：12mm × 55 × 25 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 025075-2RS 尺寸：25mm × 75 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 035090-2RS 尺寸：35mm × 90 × 34 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 030080-2RS/PE 尺寸：30mm × 80 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 040100-2RS 尺寸：40mm × 100 × 34 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 050115-2RS 尺寸：50mm × 115 × 34 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 050140-2Z 尺寸：50mm × 140 × 54 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 030080-2RS 尺寸：30mm × 80 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 017062-2RS/PE 尺寸：17mm × 62 × 25 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
