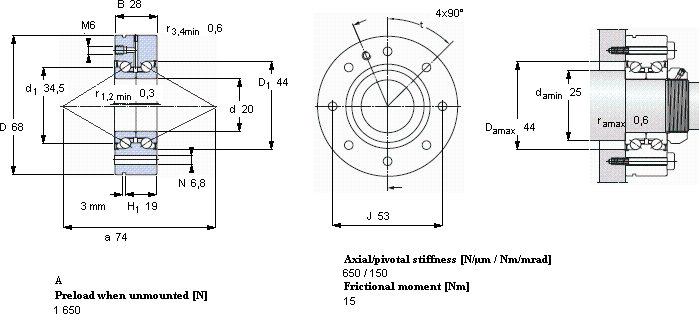

SKFBEAM 020068-2Z/PE參數
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
| mm | kN | kN | r/min | kg | - | |||||
 | ||||||||||
| 20 | 68 | 28 | 26 | 46,5 | 1,73 | 6000 | 0,61 | BEAM 020068-2Z/PE | BEAM 20/68/Z SQP60 | |
SKFAngular contact thrust ball bearings for screw drivesBEAM 020068-2Z/PE屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, double direction, for bolt mounting的Angular contact thrust ball bearings for screw drives，內徑：20，外徑：68，厚度28，SKFBEAM 020068-2Z/PE主要應用于木工機械、等領域。如果您需要購買或者了解更多關于SKFBEAM 020068-2Z/PE的信息， 歡迎撥打訂購熱線：022-27921004
- SKFBEAM 020068-2Z/PE近似型號
- SKF BEAM 020068-2RS 尺寸：20mm × 68 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF BEAM 020068-2Z/PE 尺寸：20mm × 68 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF BEAM 020068-2RS/PE 尺寸：20mm × 68 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF BEAM 020068-2Z 尺寸：20mm × 68 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 020068-2Z/PE相關型號
- SKFBEAM 035090-2Z 尺寸：35mm × 90 × 34 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 012055-2Z 尺寸：12mm × 55 × 25 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 040115-2RS 尺寸：40mm × 115 × 46 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 012055-2RS 尺寸：12mm × 55 × 25 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 020068-2RS/PE 尺寸：20mm × 68 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 035090-2RS 尺寸：35mm × 90 × 34 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 020068-2RS 尺寸：20mm × 68 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 030080-2RS 尺寸：30mm × 80 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 025075-2Z 尺寸：25mm × 75 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 025075-2Z/PE 尺寸：25mm × 75 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 020068-2Z/PE推薦型號
- SKF 6212-2RS 尺寸：60mm × 110 × 22 類型：
- KOYO 1310K 尺寸：50mm × 110 × 27 類型：
- FLT 7321B 尺寸：105mm × 225 × 49 類型：
- SNR 7232AC/DB 尺寸：160mm × 290 × 96 類型：
- KOYO 7004C/DF 尺寸：20mm × 42 × 24 類型：
- NTN HK1616 尺寸：16mm × 22 × 16 類型：
- SKF NNU4922/W33 尺寸：110mm × 150 × 40 類型：
- FLT N315 尺寸：75mm × 160 × 37 類型：
- SKF 6417 尺寸：85mm × 210 × 52 類型：
- SKF 7219BECBM 尺寸：95mm × 170 × 32 類型：
