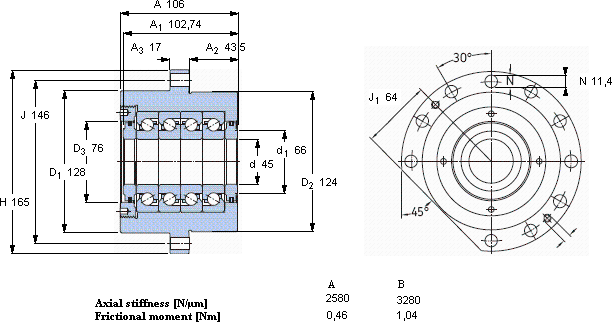

SKFFBSA 209/ QFC參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 45 | 124 | 106 | 73,35 | 268 | 9,8 | 3150 | 1575 | 9,4 | FBSA 209/ QFC | BSQU 245 TFT | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 209/ QFC屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：45，外徑：124，厚度106，SKFFBSA 209/ QFC主要應用于化工、等領域。如果您需要購買或者了解更多關于SKFFBSA 209/ QFC的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 209/ QFC近似型號
- SKF NJ 209 ECM * 尺寸：45mm × 85 × 19 類型：圓柱滾子軸承 備注：?jiǎn)瘟?/dd>
- SKF BMB-6209/080S2/EB002A 尺寸：45mm × 85 × 19 類型：機電技術 備注：傳感器-軸承單元
- SKF 5209 A-2RS1 * 尺寸：45mm × 85 × 30.2 類型：角接觸球軸承 備注：雙列
- SKF 2 x 7209 BECBP * 尺寸：45mm × 85 × 38 類型：角接觸球軸承 備注：?jiǎn)瘟校糜谂鋵?duì)安裝
- SKF 22209 E * 尺寸：45mm × 85 × 23 類型：球面滾子軸承 備注：圓柱和圓錐孔
- SKF 6209-2ZNR * 尺寸：45mm × 85 × 19 類型：深溝球軸承 備注：?jiǎn)瘟?，帶止?dòng)環槽
- SKF 11209 TN9 尺寸：45mm × 85 × 58 類型：自調心球軸承 備注：圓柱孔和圓錐孔
- SKF NUP 209 ECJ * 尺寸：45mm × 85 × 19 類型：圓柱滾子軸承 備注：?jiǎn)瘟?/dd>
- SKF YAT 209-112 尺寸：44.45mm × 85 × 41.5 類型：Y-軸承 備注：帶平頭螺釘鎖定的
- SKF Z 209 F 尺寸：45mm × 85 × 6 類型：密封和間隔墊圈 備注：密封墊圈
- SKFFBSA 209/ QFC相關型號
- SKFFBSA 207/ QFC 尺寸：35mm × 90 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ QBC 尺寸：25mm × 80 × 82 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ DF 尺寸：40mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ DB 尺寸：25mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QFC 尺寸：40mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ DB 尺寸：20mm × 60 × 47 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QBC 尺寸：30mm × 80 × 84 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QFC 尺寸：20mm × 60 × 77 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ DF 尺寸：35mm × 90 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210 A/ QBC 尺寸：50mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
