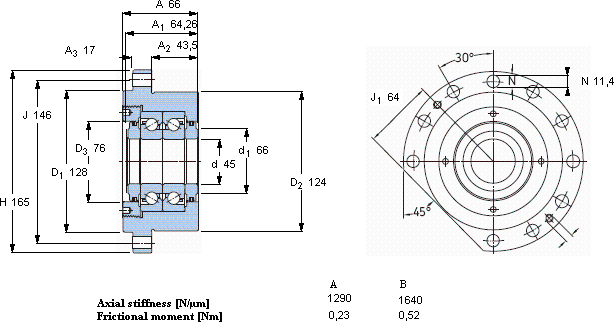

SKFFBSA 209/ DB參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 45 | 124 | 66 | 45 | 134 | 4,9 | 5040 | 2520 | 5,9 | FBSA 209/ DB | BSDU 245 DD | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 209/ DB屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：45，外徑：124，厚度66，SKFFBSA 209/ DB主要應用于儀器儀表、等領域。如果您需要購買或者了解更多關于SKFFBSA 209/ DB的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 209/ DB近似型號
- SKF 51209 尺寸：45mm × 73 × 20 類型：推力球軸承 備注：單向
- SKF 81209 TN 尺寸：45mm × 73 × 20 類型：圓柱滾子推力軸承 備注：軸承 / 圓柱滾子和保持架止推組件
- SKF NJ 209 ECM * 尺寸：45mm × 85 × 19 類型：圓柱滾子軸承 備注：單列
- SKF YAT 209 尺寸：45mm × 85 × 37 類型：Y-軸承 備注：帶平頭螺釘鎖定的
- SKF 22209 EK * 尺寸：45mm × 85 × 23 類型：球面滾子軸承 備注：圓柱和圓錐孔
- SKF WS 81209 尺寸：0mm × 45 × 5.5 類型：圓柱滾子推力軸承 備注：軸承圈 - 滾針推力軸承,圓柱滾子推力軸承
- SKF BSA 209 CG 尺寸：45mm × 85 × 19 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, single direction
- SKF NUP 2209 ECP * 尺寸：45mm × 85 × 23 類型：圓柱滾子軸承 備注：單列
- SKF YAR 209-112-2FW/VA201 尺寸：44.45mm × 85 × 49.2 類型：Y-軸承 備注：用于高溫
- SKF H 209 尺寸：40mm × 45 × 33 類型：軸承附件 備注：緊定套
- SKFFBSA 209/ DB相關型號
- SKFFBSA 208/ DB 尺寸：40mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ QBC 尺寸：25mm × 80 × 82 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QBC 尺寸：40mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ DB 尺寸：20mm × 60 × 47 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ DF 尺寸：30mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208 A/ QFC 尺寸：40mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DB 尺寸：45mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206 A/ QFC 尺寸：30mm × 88 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ DF 尺寸：50mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 212 A/ QFC 尺寸：60mm × 145 × 114 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DB推薦型號
- STEYR 6001-RS 尺寸：12mm × 28 × 8 類型：
- KOYO 2320K 尺寸：100mm × 215 × 73 類型：
- MRC 7301C/DB 尺寸：12mm × 37 × 24 類型：
- MRC 7204B/DB 尺寸：20mm × 47 × 28 類型：
- NTN GE120ES-2RS 尺寸：120mm × 180 × 85 類型：
- SKF 51322 尺寸：110mm × 190 × 63 類型：
- FLT NU2228E 尺寸：140mm × 250 × 68 類型：
- ZKL NJ422 尺寸：110mm × 280 × 65 類型：
- MRC NF232 尺寸：160mm × 290 × 48 類型：
- SKF NUP322ECP 尺寸：110mm × 240 × 50 類型：
