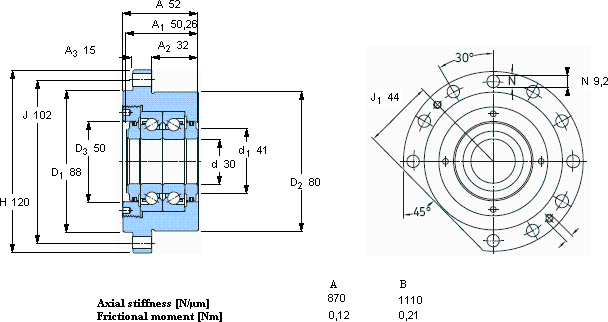

SKFFBSA 206/ DB參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 30 | 80 | 52 | 28,5 | 71 | 2,65 | 6400 | 3200 | 2,5 | FBSA 206/ DB | BSDU 230 DD | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 206/ DB屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：30，外徑：80，厚度52，SKFFBSA 206/ DB主要應用于 燃?xì)廨啓C(jī)、等領域。如果您需要購買或者了解更多關于SKFFBSA 206/ DB的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 206/ DB近似型號
- SKF 6206-ZNR * 尺寸：30mm × 62 × 16 類型：深溝球軸承 備注：單列，帶止動環槽
- SKF C 2206 V * 尺寸：30mm × 62 × 20 類型：CARB?圓環滾子軸承 備注：圓柱和圓錐孔
- SKF 7206 BEGBY 尺寸：30mm × 62 × 16 類型：角接觸球軸承 備注：單列
- SKF 7206 BEGAY 尺寸：30mm × 62 × 16 類型：角接觸球軸承 備注：單列
- SKF NU 2060 ECMA 尺寸：300mm × 460 × 95 類型：圓柱滾子軸承 備注：單列
- SKF 51206 V/HR11T1 尺寸：30mm × 52 × 16 類型：工程產品 備注：聚合物球軸承,推力球軸承
- SKF 6206 * 尺寸：30mm × 62 × 16 類型：深溝球軸承 備注：單列
- SKF 7206 BEGAP * 尺寸：30mm × 62 × 16 類型：角接觸球軸承 備注：單列
- SKF NUP 2206 ECP * 尺寸：30mm × 62 × 20 類型：圓柱滾子軸承 備注：單列
- SKF 3206 A-2Z/MT33 * 尺寸：30mm × 62 × 23.8 類型：角接觸球軸承 備注：雙列
- SKFFBSA 206/ DB相關型號
- SKFFBSA 207/ QFC 尺寸：35mm × 90 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QFC 尺寸：30mm × 80 × 84 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ DF 尺寸：40mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208 A/ QBC 尺寸：40mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ DB 尺寸：20mm × 60 × 47 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ QBC 尺寸：35mm × 90 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 212 A/ QBC 尺寸：60mm × 145 × 114 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ DF 尺寸：50mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 212 A/ QFC 尺寸：60mm × 145 × 114 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QBC 尺寸：20mm × 60 × 77 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
