SKFBEAM 040100-2RS參數

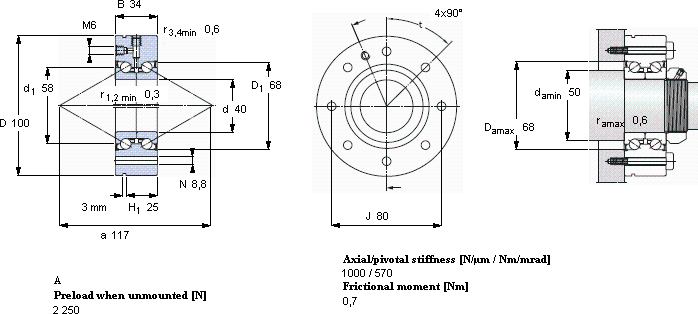

| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
| mm | kN | kN | r/min | kg | - | |||||
 | ||||||||||
| 40 | 100 | 34 | 43,6 | 102 | 3,75 | 2200 | 1,45 | BEAM 040100-2RS | BEAM 40/100/C 7P60 | |
SKFAngular contact thrust ball bearings for screw drivesBEAM 040100-2RS屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, double direction, for bolt mounting的Angular contact thrust ball bearings for screw drives，內徑：40，外徑：100，厚度34，SKFBEAM 040100-2RS主要應用于軋鋼機、等領域。如果您需要購買或者了解更多關于SKFBEAM 040100-2RS的信息， 歡迎撥打訂購熱線：022-27921004
- SKFBEAM 040100-2RS近似型號
- SKF BEAM 040100-2Z 尺寸：40mm × 100 × 34 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF BEAM 040100-2RS 尺寸：40mm × 100 × 34 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 040100-2RS相關型號
- SKFBEAM 030100-2Z 尺寸：30mm × 100 × 38 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 020068-2Z 尺寸：20mm × 68 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 060145-2RS 尺寸：60mm × 145 × 45 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 020068-2RS/PE 尺寸：20mm × 68 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 025075-2RS/PE 尺寸：25mm × 75 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 030080-2RS/PE 尺寸：30mm × 80 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 050140-2RS 尺寸：50mm × 140 × 54 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 017062-2RS/PE 尺寸：17mm × 62 × 25 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 025075-2Z/PE 尺寸：25mm × 75 × 28 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 017062-2Z/PE 尺寸：17mm × 62 × 25 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKFBEAM 040100-2RS推薦型號
- NTN 6309-RS 尺寸：45mm × 100 × 25 類型：
- STEYR 1200 尺寸：10mm × 30 × 9 類型：
- MRC 7234B/DB 尺寸：170mm × 310 × 104 類型：
- NTN 7240AC/DF 尺寸：200mm × 360 × 116 類型：
- STEYR 7236B/DT 尺寸：180mm × 320 × 110 類型：
- NTN BK1516 尺寸：15mm × 21 × 16 類型：
- STEYR 53264 尺寸：320mm × 440 × 100.5 類型：
- SKF NU1021 尺寸：105mm × 160 × 26 類型：
- FYH UCFU311 尺寸：55mm × 66 × 185 類型：
- SKF 32234J2 尺寸：170mm × 310 × 91 類型：
