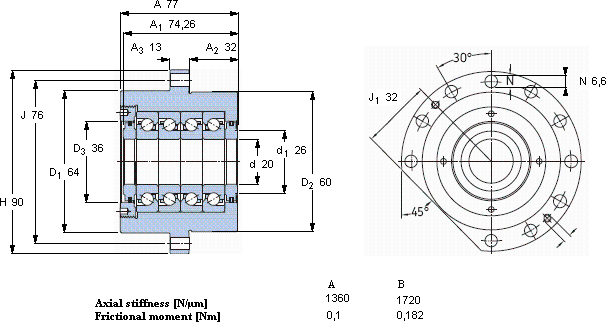

SKFFBSA 204/ QBC參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 20 | 60 | 77 | 35,86 | 98 | 3,6 | 4750 | 2375 | 1,7 | FBSA 204/ QBC | BSQU 220 TDT | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 204/ QBC屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：20，外徑：60，厚度77，SKFFBSA 204/ QBC主要應用于冶金、等領域。如果您需要購買或者了解更多關于SKFFBSA 204/ QBC的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 204/ QBC近似型號
- SKF 5204 A * 尺寸：20mm × 47 × 20.6 類型：角接觸球軸承 備注：雙列
- SKF CR 22042 尺寸：56.007mm × 78 × 7.5 類型：徑向軸密封件 備注：徑向軸密封件
- SKF BMB-6204/048S2/EA002A 尺寸：20mm × 47 × 14 類型：機電技術 備注：傳感器-軸承單元
- SKF YAR 204-2RF/W64 尺寸：20mm × 47 × 31 類型：工程產品 備注：Y-軸承, 含Solid Oil
- SKF YAR 204-012-2FW/VA228 尺寸：19.05mm × 47 × 31 類型：Y-軸承 備注：用于高溫
- SKF 6204-RSH * 尺寸：20mm × 47 × 14 類型：深溝球軸承 備注：單列
- SKF 6204 N * 尺寸：20mm × 47 × 14 類型：深溝球軸承 備注：單列，帶止動環槽
- SKF YAR 204-012-2RF 尺寸：19.05mm × 47 × 31 類型：Y-軸承 備注：帶平頭螺釘鎖定的
- SKF RNA 2204.2RS 尺寸：25mm × 47 × 17.8 類型：滾輪軸承 備注：不帶法蘭圈支承滾子，無內圈
- SKF FBSA 204/ DB 尺寸：20mm × 60 × 47 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QBC相關型號
- SKFFBSA 210/ QBC 尺寸：50mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ QFC 尺寸：45mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ DB 尺寸：40mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QBC 尺寸：40mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ DB 尺寸：25mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208 A/ QFC 尺寸：40mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DB 尺寸：45mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206 A/ QFC 尺寸：30mm × 88 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ DF 尺寸：50mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210 A/ QBC 尺寸：50mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QBC推薦型號
