SKFBSD 55120 CG參數

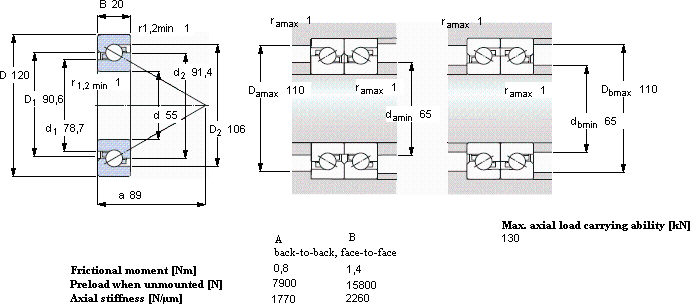

| 角接觸推力球軸承 for screw drives, single direction | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | ||||||||||
| d | D | H | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 55 | 120 | 20 | 69,5 | 216 | 8 | 5000 | 6000 | 1,14 | BSD 55120 CG | BS 55/120 7P62U | |
SKFAngular contact thrust ball bearings for screw drivesBSD 55120 CG屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, single direction的Angular contact thrust ball bearings for screw drives，內徑：55，外徑：120，厚度20，SKFBSD 55120 CG主要應用于輸送等機械上、等領域。如果您需要購買或者了解更多關于SKFBSD 55120 CG的信息， 歡迎撥打訂購熱線：022-27921004
- SKFBSD 55120 CG近似型號
- SKF BSD 55120 CG 尺寸：55mm × 120 × 20 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, single direction
- SKFBSD 55120 CG相關型號
- SKFBSA 215 CG 尺寸：75mm × 130 × 25 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, single direction
- SKFBSA 205 CG 尺寸：25mm × 52 × 15 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, single direction
- SKFBSA 201 CG 尺寸：12mm × 32 × 10 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, single direction
- SKFBSD 55100 CG 尺寸：55mm × 100 × 20 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, single direction
- SKFBSA 306 CG 尺寸：30mm × 72 × 19 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, single direction
- SKFBEAS 017047-2RS 尺寸：17mm × 47 × 25 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, single direction
- SKFBEAS 017047-2Z 尺寸：17mm × 47 × 25 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, single direction
- SKFBSA 203 CG 尺寸：17mm × 40 × 12 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, single direction
- SKFBSD 3572 CG 尺寸：35mm × 72 × 15 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, single direction
- SKFBSD 2562 CG 尺寸：25mm × 62 × 15 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, single direction
- SKFBSD 55120 CG推薦型號
- FAFNIR 6315 尺寸：75mm × 160 × 37 類型：
- KOYO 6304-Z 尺寸：20mm × 52 × 15 類型：
- KOYO 7318C 尺寸：90mm × 190 × 43 類型：
- BARDEN 7036C/DF 尺寸：180mm × 280 × 92 類型：
- KOYO NJ309 尺寸：45mm × 100 × 25 類型：
- STEYR NUP2215E 尺寸：75mm × 130 × 31 類型：
- MAC NUP313 尺寸：65mm × 140 × 33 類型：
- KINGON MF63 尺寸：3mm × 6 × 2 類型：
- KINGON MF93ZZ 尺寸：3mm × 9 × 4 類型：
- SKF W619/9-2Z 尺寸：9mm × 20 × 6 類型：
